[xep-support] Re: Tables with only <fo:table-header> are not rendered close to end of page
Hugo Inacio
Hugo.Inacio at objective.com
Tue Sep 25 19:35:03 PDT 2018
Hi Kevin,
So for renderX, there has to be content inside the table body for it to show on output. It still "feels" strange having tables show on the page until it gets to the page break mark, to where they start disappearing. Also, it would be good to have some sort of Error log information stating that the table would not show on output.
Thanks,
Hugo
From: Xep-support <xep-support-bounces at renderx.com> On Behalf Of Kevin Brown
Sent: Wednesday, 26 September 2018 10:19 AM
To: 'RenderX Community Support List' <xep-support at renderx.com>
Cc: Jim Fretwell <Jim.Fretwell at objective.com>
Subject: [xep-support] Re: Tables with only <fo:table-header> are not rendered close to end of page
If I simply open you FO in oXygen, you do realize there are dozens of errors.
I see this: <fo:table width="100%" border-collapse="collapse" id="d38e5658">
and 10 lines later I see this: <fo:table width="100%" border-collapse="collapse" id="d38e5658">
Those IDs are the same. Gee, another error ... you cannot have a singular XML document with IDs all the same ... 100s of them.
Step 1) Removed all IDs that are duplicate
Step 2) Removed invalid precedence=true/false on something you have that is not anything XSL SO
All you content formats in one page, what did you expect?

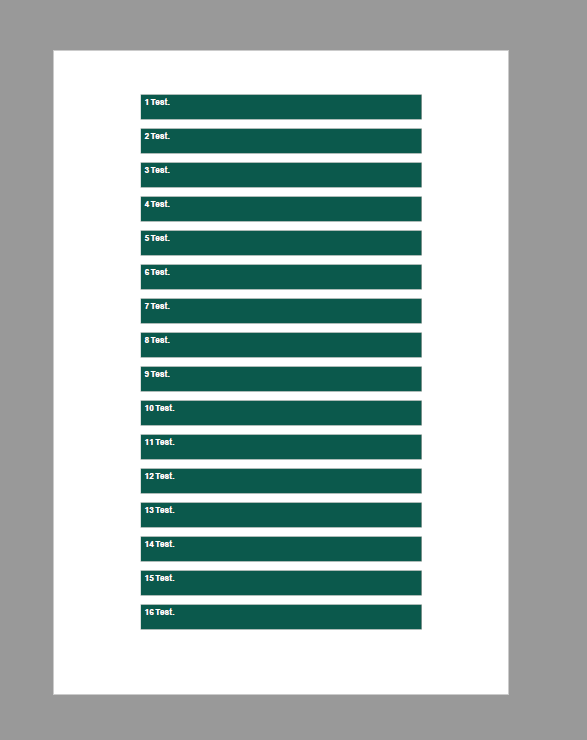

[cid:image001.png at 01D45595.586AF680]
Kevin Brown
RenderX
-----Original Message-----
From: Xep-support [mailto:xep-support-bounces at renderx.com] On Behalf Of Hugo Inacio
Sent: Tuesday, September 25, 2018 4:55 PM
To: RenderX Community Support List <xep-support at renderx.com<mailto:xep-support at renderx.com>>
Cc: Jim Fretwell <Jim.Fretwell at objective.com<mailto:Jim.Fretwell at objective.com>>
Subject: [xep-support] Re: Tables with only <fo:table-header> are not rendered close to end of page
Thank you for your email. I've checked the spec, and yes, you are right in saying that the table is not correct without a table-body element.
I would assume that XEP would treat all tables the same then, meaning none of the tables should display as none of them are conformant?
I have also tested with the following ( valid FO according to spec):
<fo:table-body><fo:table-row><fo:table-cell><fo:block/></fo:table-cell></fo:table-row></fo:table-body>
And still achieve the same unwanted result: Only the tables on the first page appear, and the tables that are supposed to show up in the second page do not show. I have added the file for reference.
Hugo
-----Original Message-----
From: Xep-support <xep-support-bounces at renderx.com<mailto:xep-support-bounces at renderx.com>> On Behalf Of G. Ken Holman
Sent: Tuesday, 25 September 2018 4:38 AM
To: RenderX Community Support List <xep-support at renderx.com<mailto:xep-support at renderx.com>>; xep-support at renderx.com<mailto:xep-support at renderx.com>
Cc: Jim Fretwell <Jim.Fretwell at objective.com<mailto:Jim.Fretwell at objective.com>>
Subject: [xep-support] Re: Tables with only <fo:table-header> are not rendered close to end of page
A <table> without a <table-body> is an error, so the fact that anything is or is not displayed is irrelevant ... you should be using valid XSL-FO.
Ref: https://www.w3.org/TR/2006/REC-xsl11-20061205/#fo_table
>Contents:
>
>(<https://www.w3.org/TR/2006/REC-xsl11-20061205/#fo_table-column>table-
>column*,<https://www.w3.org/TR/2006/REC-xsl11-20061205/#fo_table-header
>>table-header?,<https://www.w3.org/TR/2006/REC-xsl11-20061205/#fo_table
>-footer>table-footer?,<https://www.w3.org/TR/2006/REC-xsl11-20061205/#f
>o_table-body>table-body+)
I hope this is helpful.
. . . . Ken
At 2018-09-24 01:57 +0000, Hugo Inacio wrote:
>For these three files (tables_with_body.fo,
>tables_with_empty_body_and_header.fo, tables_with_header_only.fo ),
>only the first one will show the second page. Meaning that tables that
>contain only header cells are ignored when being placed on the next
>page. Is this a render X issue?
>
>Hugo Inacio
>
>
>
>_______________________________________________
>(*) To unsubscribe, please visit
>http://lists.renderx.com/mailman/options/xep-support
>(*) By using the Service, you expressly agree to these Terms of Service
>http://w ww.renderx.com/terms-of-service.html
--
Contact info, blog, articles, etc. http://www.CraneSoftwrights.com/f/ | Check our site for free XML, XSLT, XSL-FO and UBL developer resources | Streaming hands-on XSLT/XPath 2 training class @ US$45 (5 hours free) |
