[xep-support] Re: Absolute position relative to container

[Kevin Brown]

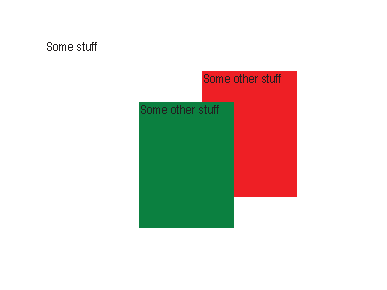

Not sure I get the question, but like this?

        <fo:flow flow-name="xsl-region-body">

            <fo:block-container position="relative">
                <fo:block>Some stuff</fo:block>
                <fo:block-container width="3cm" height="4cm"
position="absolute" top="1cm" left="5cm" background-color="red">
                    <fo:block>
                        Some other stuff
                    </fo:block>
                </fo:block-container>
                <fo:block-container width="3cm" height="4cm"
position="absolute" top="2cm" left="3cm" background-color="green">
                    <fo:block>
                        Some other stuff
                    </fo:block>
                </fo:block-container>
            </fo:block-container>
        </fo:flow>







Kevin Brown

(650) 327-1000 Direct

(650) 328-8008 Fax

(925) 395-1772 Mobile

skype:kbrown01

kevin at renderx.com <mailto:kevin at renderx.com>

sales at renderx.com <mailto:sales at renderx.com>

http://www.renderx.com <http://www.renderx.com/>









From: Xep-support [mailto:xep-support-bounces at renderx.com] On Behalf Of
Darren Munt
Sent: Thursday, April 06, 2017 1:27 AM
To: xep-support at renderx.com
Subject: [xep-support] Absolute position relative to container



I want to align some block-containers within a containing block. I'm not
sure if that is possible, or maybe I need a different document structure.



<fo:block>

                Some stuff

                <fo:block-container width="3cm" height="4cm"
position="absolute" top="1cm" left="5cm">

                                Some other stuff

                </fo:block-container>

</fo:block>



So what I want is for the block-container to be positioned 1cm from the top
and 5cm from the left of the top left corner of the parent block.



When I try this, position is relative to the xsl-region-body.



What am I doing wrong? I realise that the container is taken out of the
flow, so this is obviously not the right way to do it.
