[xep-support] XSLFO: trouble with text-align-last="justify" and linefeed-treatment="preserve"

[Kirch Fritz]

Dear xep-support,



why are ALL lines of  a <fo:block text-align-last="justify"
linefeed-treatment="preserve"> justified?

Is this a misunderstanding of the term "text-align-last" by myself or is
this a bug of the Renderer?



This was my FO-file:



<?xml version="1.0" encoding="US-ASCII"?>
<root xmlns="http://www.w3.org/1999/XSL/Format"
      font-family="Times"
      font-size="18pt">

    <layout-master-set>
        <simple-page-master master-name="frame"
             page-height="297mm"
             page-width="210mm"
             margin-top="15mm"
             margin-bottom="15mm"
             margin-left="15mm"
             margin-right="15mm">
            <region-body region-name="frame-body" />
        </simple-page-master>
    </layout-master-set>

    <page-sequence master-reference="frame">
        <flow flow-name="frame-body">
            <block end-indent="10cm">
                <block text-align-last="justify"
                       background-color="green"
                       color="white">
                    Hallo Hallo Hallo Hallo Hallo Hallo Hallo Hallo
                </block>
                <block text-align-last="justify"
                       linefeed-treatment="preserve"
                       background-color="red"
                       color="white">Hallo Hallo Hallo Hallo
                    Hallo Hallo Hallo Hallo
                </block>
            </block>
        </flow>
    </page-sequence>
</root>

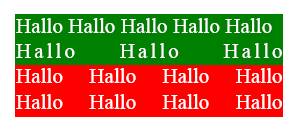

This is how the resulting PDF looks alike:





Can you help me?

I use XEPWIN 4.10 with Windows XP



Fritz Kirch


**********************************************************************
