[xep-support] Alignment/space issue with an SVG image in FO with XEP

William McVey wam at cisco.com
Mon Oct 18 08:48:02 PDT 2004


The attached FO document uses a combination of fo:blocks and an SVG
image to build a divider with a mitered corner. When rendered with XEP
3.7.8, I get an annoying one or two pixel gap between the top of the SVG

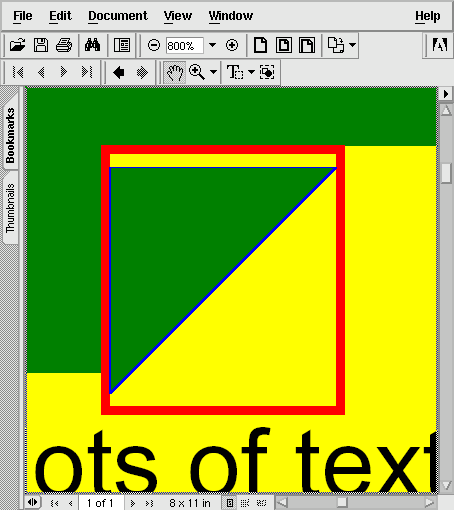

element and the enclosing block (I've included a small screenshot (under
magnification) so everyone can see what I'm talking about. I've set all
the spacing attributes (space-before, space-after, padding-before,
padding-after, etc) that I thought would have an impact, with no
success. I define the svg within a fo:instream-foreign-object within a
fo:block. The enclosing block's border (in red) seems to indicate that
the block is a being properly placed; however, the SVG object isn't
filling the block the way I thought it should (interestingly it fills
the horizontal dimension but not the vertical).

Any help would be very much appreciated.

  -- William
