[xep-support] Table captions

[Ruth Anderson]

Our tables usually have a header element  and a caption element so
would I have a table within a table structure each with their own
header to accomplish this. Also our caption element is formated in fo:
list block  to get spacing between the table number and font change for
the table caption text.

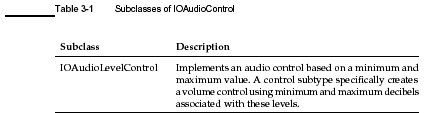

Something like this:

-------------- next part --------------
A non-text attachment was scrubbed...
Name: Picture-1.gif
Type: image/gif
Size: 3401 bytes
Desc: not available
URL: <http://lists.renderx.com/pipermail/xep-support/attachments/20040430/be15aacf/attachment.gif>
-------------- next part --------------


We'd like the caption and the header to repeat at the top of a table
when it breaks across several pages. Got any suggestions?
Thanks


On Apr 28, 2004, at 1:31 AM, Alexander Peshkov wrote:

> Hello Ruth,
>
> Table caption is not a repeatable element in XSL-FO. In order to
> emulate such repetition you have to use table headers. You can place
> your actual table in the single body cell of the wrapper table which
> has required caption text in the header. This header will be repeated
> at the beginning of every page.
>
> Best regards,
> Alexander Peshkov
> mailto:peshkov at renderx.com
> RenderX
>
>
> ra> Are there plans for future versions of XEP to support the table
> ra> captions repeating at the top of the table when a table breaks
> across
> ra> several pages?
> ra> Thanks
> ra> Ruth
>
